STM32F103VET6 IC Electronic Components ARM Microcontrollers MCU 32BIT

Product description

The STM32F103VET6 is a 32-bit high-density performance line Microcontroller Unit that includes three 12-bit ADCs, four general-purpose 16-bit timers, and two PWM timers, as well as standard and advanced communication interfaces that include up to two I2Cs, three SPIs and two I2Ss, one SDIO, five USARTs, and a USB and a CAN. It includes the high-performance ARM® Cortex®-M3 32bit RISC CPU running at 72MHz, high-speed embedded memory, and a wide range of upgraded I/Os and peripherals connected to two APB buses. T

Product details/Parameters

Manufacturer	STMicroelectronics
Product Category	Microcontrollers
Series	STM32 F1
Packaging	Tray
Unit-Weight	0.046530 oz
Mounting-Style	SMD/SMT
Tradename	STM32
Package-Case	100-LQFP
Operating-Temperature	-40°C ~ 85°C (TA)
Supplier-Device-Package	*
Number-of-I-O	80 I/O
Speed	72MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M3
RAM-Size	64K x 8
Program Memory	FLASH
Peripherals	DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Connectivity	CAN, I2C, IrDA, LIN, SPI, UART/USART, USB
Voltage-Supply-Vcc-Vdd	2 V ~ 3.6 V
Core-Size	32-Bit
Program-Memory-Size	512KB (512K x 8)
Data-Converters	A/D 16x12b; D/A 2x12b
Oscillator-Type	Internal
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	2 V to 3.6 V
Interface-Type	CAN I2C SPI USART USB
Core	ARM Cortex M3
Processor-Series	ARM Cortex-M
Data-Bus-Width	32 bit
Supply-Voltage-Max	3.6 V
Supply-Voltage-Min	2 V
Package-Case	LQFP-100
Maximum-Clock-Frequency	72 MHz
Number-of-ADC-Channels	16 ADC Channels
Input/output	80 I/O
Data-RAM-Size	64 kB
Number-of-Timers-Counters	8 Timer
ADC-Resolution	12 bit
Data-RAM-Type	SRAM

Part of the recommended inventory list

advantages

1. Parts source determine price, The source of our parts is very initial.

2. Price can be negotiable based on quantity; delivery terms;

3. We will try to help customers to reduce freight charge.

4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day

STM32F103VET6

STM32F103VET6 IC Electronic Components

ARM Microcontrollers MCU 32BIT

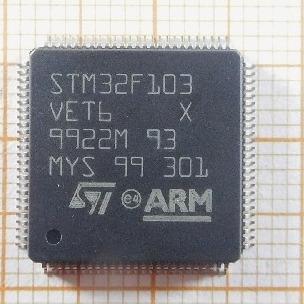

STM32F103VET6 IC Electronic Components ARM Microcontrollers MCU 32BIT Images
